The Graco FinishPro II 395 PC (17C417) is Graco's premier air-assisted airless sprayer designed for professional contractors who demand high-quality finish results with maximum efficiency. Featuring SmartControl pressure management, an onboard air compressor, and the ability to switch between air-assisted and airless modes, the FinishPro II 395 PC delivers exceptional atomization, reduced overspray, and increased productivity on fine-finish projects.

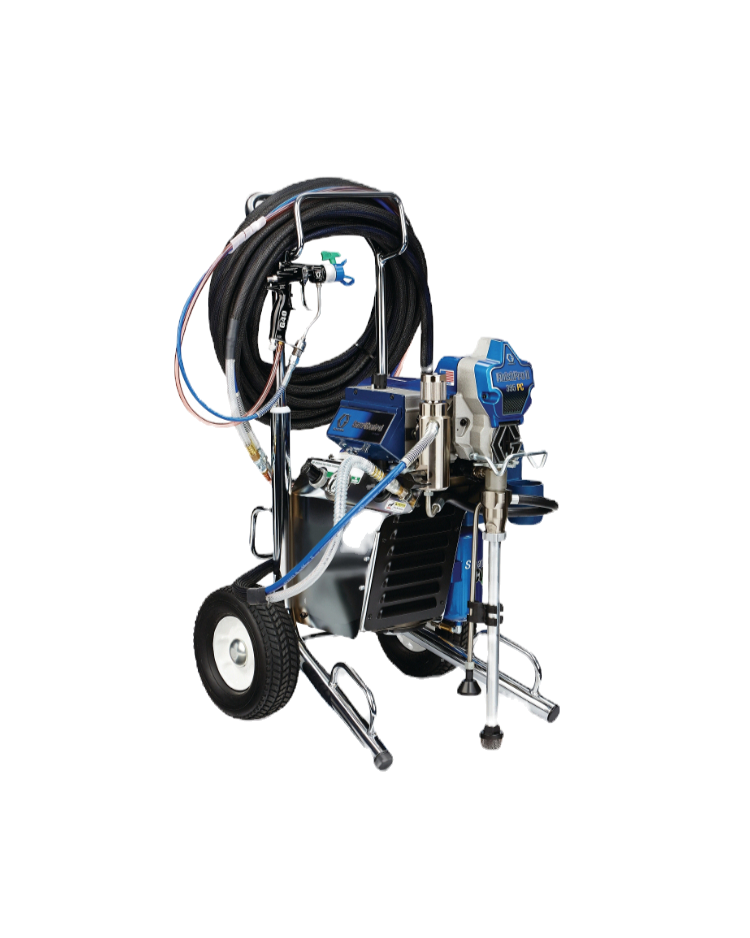

Graco FinishPro II 395 PC Electric Air-Assisted Airless Sprayer
SKU: 17C417
$4,350.00Price
- SmartControl 1.0 with Digital Display
- Increased spray performance
- Consistent spray fan without pressure fluctuations at all spraying pressures
- Digital display accurately shows spraying pressure
- SmartComp
- Compressor is activated by the gun trigger—if you’re not spraying, it’s not running!
- Reduces jobsite noise, resulting in less fatigue
- Automatic shut-off reduces moisture entering the system and extends compressor life
- Pulling trigger delivers instant air to the gun with zero lag
- Release the trigger and SmartComp shuts off the compressor after 5 seconds
- Extends compressor life
- Chromex Endurance Pump
- The most reliable pump on the market—lasts 2 times longer than the next leading brand
- Long-life V-Max Blue packings, Chromex rod and hardened stainless steel cylinder
- QuikAccess intake valve for fast cleaning or debris clearing
- ProConnect
- Fast and easy on-the-job Pump Replacement System
- 1-minute jobsite replacement in 3 simple steps
- Pinless design eliminates the chance of losing parts during the change-out process
- High-Output On-Board Air Compressor
- Ideal for on-site finish jobs
- Delivers 3.2 ft³/min at 35 psi (0.1 m³/min at 2.4 bar)—enough air to break up the heaviest of materials
- Exclusive Pressure Unloader results in quieter operation
- Cooling coil reduces air temperature, extending the life of the critical components and providing safer operator handling
- Precision-Cut RAC X FF LP SwitchTip
- Less overspray and increased pump life
- Sprays at lower pressures with less overspray
- Pre-orifice design produces a perfect airless finish
- Finer atomization and soft edges for easier overlapping
- Reduces prep and cleanup
- Includes solvent seal for hot solvents
- G40 Spray Gun
- An industrial quality air-assisted spray gun that delivers superior finishing results
- Integrated air valve improves gun handling
- RAC X guard included
- Flat tip conversion kit included
- Super-Flex Hose Set
- The flexibility to get into tight spaces—focus on the task, not the tool!
- Extremely lightweight in hand, which reduces fatigue
- Connects directly to the gun for maximum flexibility
- Flex Wrap hose skin protects from paint build up and increases hose durability
- Two Sprayers in One
- Select air-assisted or airless modes, depending on what’s best for the application
- Simple, color-coded labels easily identify airless and air-assisted airless modes with a single selector switch
- Self-Contained & Portable
- One plug runs the entire unit, simplifying jobsite operation
- SmartControl 1.0 with Digital Display
Amperage (A) 15 Engine Size (HP) 0.875 Frame Configuration Cart Gun Included 1 Includes G40 Gun Air-Assisted Airless Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Air-Assisted Airless Guard, Fine Finish Flat Tip Kit, Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz Inlet
Paint
Strainer
100 Mesh Stainless Steel Screen Max.
Flow
Rate
(GPM)
0.47 Max.
Hose
Length (ft.)
50 Max.
Sound
Pressure
Level
(dB(A))
79 Max.
Tip
Size
(in)
0.021 Max.
Tip
Size 1 Gun
(in)
0.021 Max
Working
Pressure
(MPa)
22.8 Max.
Working
Pressure
(PSI)
3300 Min.
Generator
Power (W)
4000 Model FinishPro II Motor Type TEFC DC Number of
Guns
1 Outlet Paint
Filter
100 Mesh Stainless Steel Screen Overall Height (in) 40.5 Overall Length (in) 32.5 Overall Width (in) 21 Phase 1 Power Rating (HP) 0.875 Power Source Electric Pressure
Control Type
SmartControl 1.0 Pump
Mount
Type
ProConnect Pump Rod
Type
Chromex Pump Type Endurance Recommended
Annual Usage
Up to 1095 gallons per year Series 395 PC Spray Type Air-Assisted Airless Type Air-Assisted Airless Sprayer Voltage (V) 120 Weight 110 lbs. Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel
